geopandas.GeoSeries.buffer#

GeoSeries.buffer(distance, quad_segs=None, cap_style='round', join_style='round', mitre_limit=5.0, single_sided=False, **kwargs)[source]#

Return a GeoSeries of geometries representing all points within a given distance of each geometric object.

Computes the buffer of a geometry for positive and negative buffer distance.

The buffer of a geometry is defined as the Minkowski sum (or difference, for negative distance) of the geometry with a circle with radius equal to the absolute value of the buffer distance.

The buffer operation always returns a polygonal result. The negative or zero-distance buffer of lines and points is always empty.

Parameters:

distancefloat, np.array, pd.Series: The radius of the buffer in the Minkowski sum (or difference). If np.array or pd.Series are used then it must have same length as the GeoSeries.
quad_segsint (optional, default 16): The resolution of the buffer around each vertex. Specifies the number of linear segments in a quarter circle in the approximation of circular arcs.
cap_style{‘round’, ‘square’, ‘flat’}, default ‘round’: Specifies the shape of buffered line endings. 'round' results in circular line endings (see quad_segs). Both 'square' and 'flat' result in rectangular line endings, 'flat' will end at the original vertex, while 'square' involves adding the buffer width.
join_style{‘round’, ‘mitre’, ‘bevel’}, default ‘round’: Specifies the shape of buffered line midpoints. 'round' results in rounded shapes. 'bevel' results in a beveled edge that touches the original vertex. 'mitre' results in a single vertex that is beveled depending on the mitre_limit parameter.
mitre_limitfloat, default 5.0: Crops of 'mitre'-style joins if the point is displaced from the buffered vertex by more than this limit.
single_sidedbool, default False: Only buffer at one side of the geometry.

Examples

>>> from shapely.geometry import Point, LineString, Polygon
>>> s = geopandas.GeoSeries(
...     [
...         Point(0, 0),
...         LineString([(1, -1), (1, 0), (2, 0), (2, 1)]),
...         Polygon([(3, -1), (4, 0), (3, 1)]),
...     ]
... )
>>> s
0                         POINT (0 0)
1    LINESTRING (1 -1, 1 0, 2 0, 2 1)
2    POLYGON ((3 -1, 4 0, 3 1, 3 -1))
dtype: geometry

>>> s.buffer(0.2)
0    POLYGON ((0.2 0, 0.19904 -0.0196, 0.19616 -0.0...
1    POLYGON ((0.8 0, 0.80096 0.0196, 0.80384 0.039...
2    POLYGON ((2.8 -1, 2.8 1, 2.80096 1.0196, 2.803...
dtype: geometry

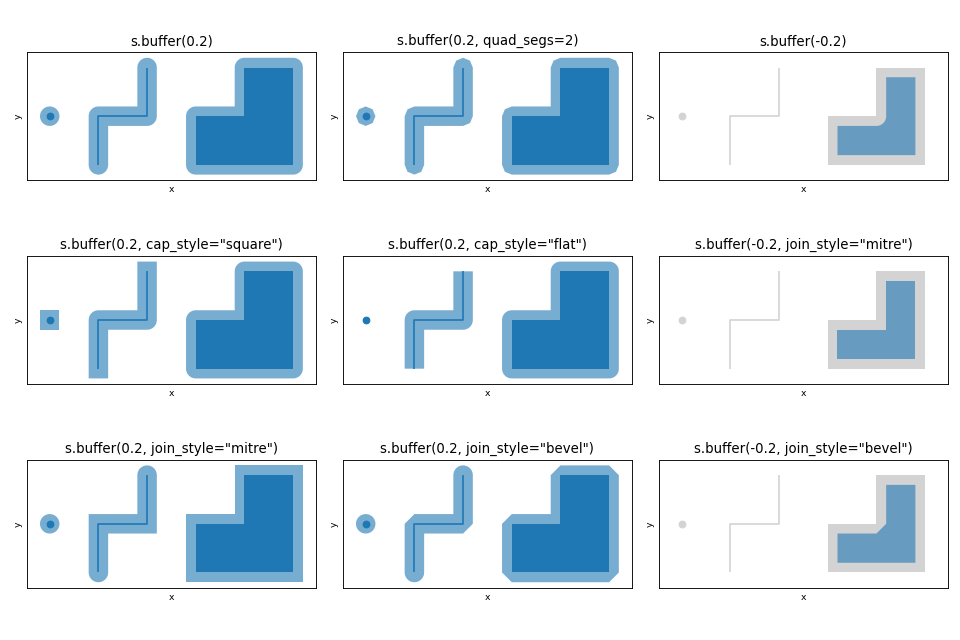

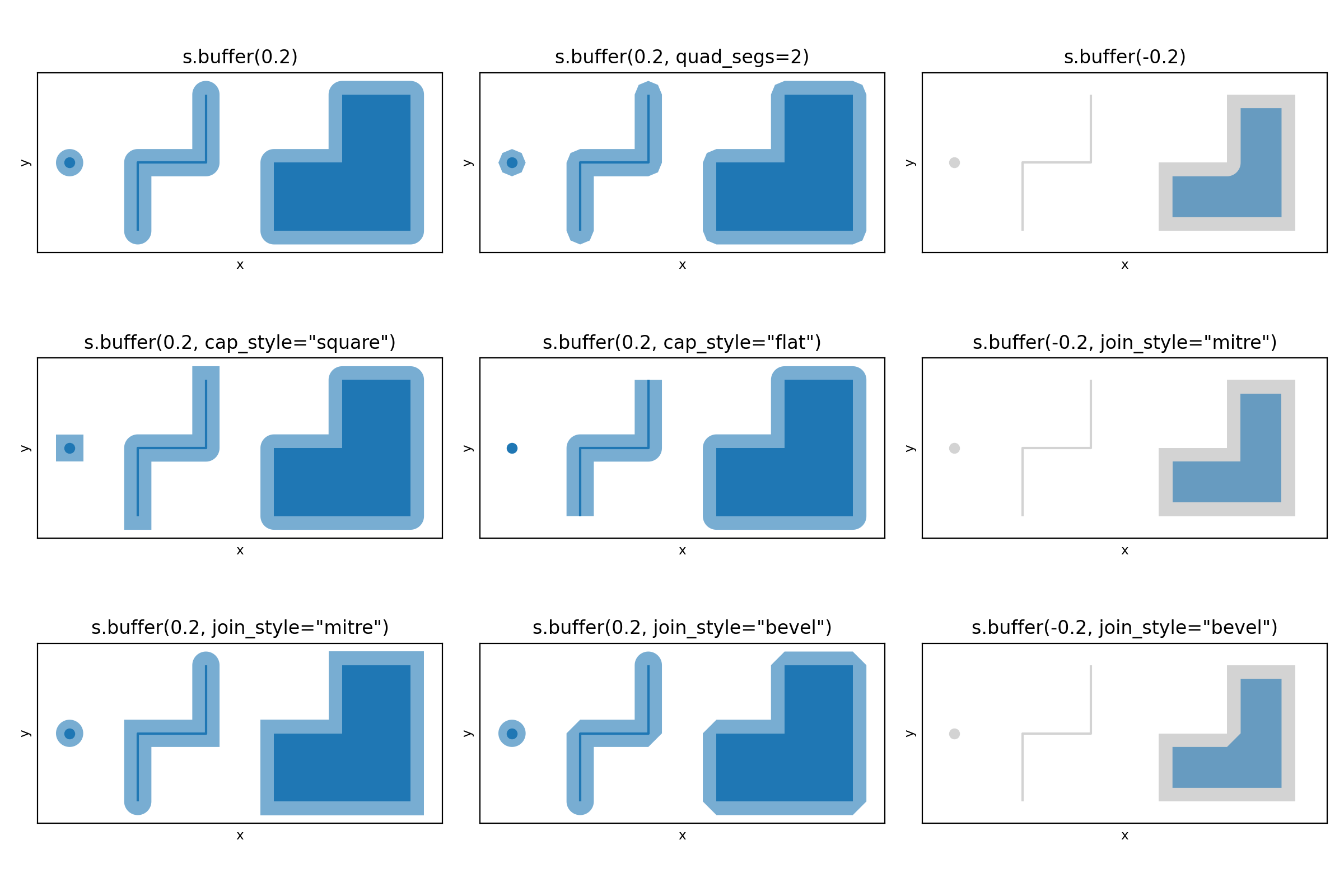

Further specification as join_style and cap_style are shown in the following illustration:

(Source code, png, hires.png, pdf)
